LED Strobe Lamps & Modules

Electronic Strobe Modules

• SUPER EASY IN-LINE INSTALLATION!
• Makes Standard LED Park-Turn-Stop Lamps Flash/Strobe
• Operate up to 30 to 40 LED lamps with One Module!

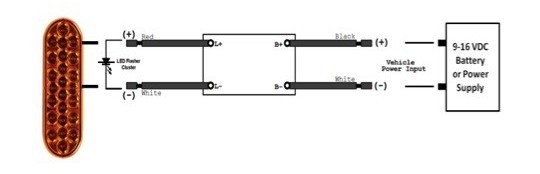

• Connect in-line between power supply & LED Lamps.

• Fully Sealed Stand-alone Electronic Flash Modules

• Two Production Designs Available:
  • P/N 44-80970-850A - 850 Flash/Minute – Hyper-Strobe
  • P/N 44-80970-6P - SAE J595 6 Pulse/Pause Flash Pattern

• Customized Flash Patterns – We will design and manufacture to YOUR SPECIFICATION.
• Small Package – 1.0" x 0.75" x 0.75" with 6 inch wires

LED Strobe Lamps

• Alternate or Synchronous Flash with Other Lamps
• Operating Voltage From 9 – 36 Volts
• Fully Sealed Lamps with integral strobe electronics
• Epoxy Encapsulated LED's and Electronics
• High Impact Polycarbonate Lens & Housings
• Multiple Mounting Brackets & Grommets Available
• Standard PL-3, Hardwired & Custom Connections
• Meets SAE J595 standard 6 pulse/pause pattern
• Exceeds SAE J577 Shock and J575 Vibration, Moisture, Corrosion, Dust and Lens Warp Test Reqt's
• SEE CATALOG FOR ADDITIONAL GROMMETS, MOUNTS & WIRING OPTIONS

40 Series — 24 LED - 4 Inch ROUND Strobe Lamps

Material: Polycarbonate Lens, Polycarbonate Base
Light Source: LED 24 Pcs Super Flux Light Emitting Diodes
Voltage/Watt: 9~36V 0.7 Amp
SAE Coding: W-2

Part Numbers:
40-10000-S – 24 LED Red Lamp
40-80000-S – Red Lamp Kit (Lamp, Grommet, 3 Wire Plug)
40-10100-S – 24 LED Amber Lamp
40-80100-S – Amber Lamp Kit (Lamp, Grommet, 3 Wire Plug)

40-71700 – Grommet
40-61800 – Snap-on Flange Mount
44-40780 – 3 Wire Plug - Straight
44-40770 – 3 Wire Plug - Right Angle

SEE CATALOG FOR ADDITIONAL GROMMETS, MOUNTS & WIRING OPTIONS

60 Series — 24 LED - 6 Inch OVAL Strobe Lamps

Material: Polycarbonate Lens, Polycarbonate Base
Light Source: LED 24 Pcs Super Flux Light Emitting Diodes
Voltage/Watt: 9~36V 0.7 Amp
SAE Coding: W-2

Part Numbers:
60-10010-S – 24 LED Red Lamp
60-80010-S – Red Lamp Kit (Lamp, Grommet, 3 Wire Plug)
60-10110-S – 24 LED Amber Lamp
60-80110-S – Amber Lamp Kit (Lamp, Grommet, 3 Wire Plug)

60-71710 – Grommet
60-61810 – Snap-on Flange Mount
44-40780 – 3 Wire Plug - Straight
44-40770 – 3 Wire Plug - Right Angle

SEE CATALOG FOR ADDITIONAL GROMMETS, MOUNTS & WIRING OPTIONS

60 Series - 35 LED 6" OVAL SEQUENTIAL Arrow

Material: Polycarbonate Lens, Polycarbonate Base
Light Source: LED 35 Pcs Super Flux Light
Voltage/Watt: 9~36V 0.7 Amp

Sequential Arrows Flash for Optimum Visibility
Fits Industry Standard 6 Inch Oval Lamp Mountings
Arrows Light one at a Time in Sequence and then Repeat

Part Numbers:
60-10010-AS – 24 LED Red Lamp
60-80010-AS – Red Lamp Kit (Lamp, Grommet, 3 Wire Plug)
60-10110-AS – 24 LED Amber Lamp
60-80110-AS – Amber Lamp Kit (Lamp, Grommet, 3 Wire Plug)

60-71710 – Grommet
60-61810 – Snap-on Flange Mount
44-40780 – 3 Wire Plug - Straight
44-40770 – 3 Wire Plug - Right Angle

SEE CATALOG FOR ADDITIONAL GROMMETS, MOUNTS & WIRING OPTIONS

11 Series - 4 LED White Strobe Lamp

Material: Polycarbonate Lens, Aluminum Base
Light Source: LED 4 Pcs High Power Light
Voltage/Watt: 9~36V 0.3 Amp
SAE Coding: W-2

Part Numbers:

P/N 11-10220-S - 4 LED White Strobe Lamp

11 Series - 4 LED Strobe Lamps

Material: Polycarbonate Lens, Aluminum Base
Light Source: LED 4 Pcs High Power Light
Voltage/Watt: 9~36V 0.3 Amp
SAE Coding: W-2

Part Numbers:

P/N 11-10020-S - 4 LED Red Strobe Lamp

P/N 11-10120-S - 4 LED Amber Strobe Lamp

ROOF TOP LED Strobe Lamp

Material: Polycarbonate Lens, Aluminium Housing, 18 gauge wire
Light Source: 12 pcs super flux LEDs
Voltage/Watt: 9~36V / 1W

Part Number: P/N 11-10100-RS

Features:

• Strobe for Visibility and Warning Functions
• Available in Blue, Amber and Red
• Fixed and Magnetic Mount Designs with Coiled Cords
• Fully Sealed LED's and Electronics
• Low Current Draw & over 50,000 Hrs Life
